Product Details
Place of Origin: China
Brand Name: YESWITCH
Certification: IP68,CE,RoHS
Model Number: HT802SG1B3T1D11
Payment & Shipping Terms
Minimum Order Quantity: 500
Price: Negotiable
Packaging Details: Carton
Delivery Time: 4-6 Weeks
Payment Terms: T/T
Supply Ability: 7,000/Day
CONTACT RESISTANCE: |
20m Ohm(Max) |
INSULATION RESISTANCE: |
100VDC-100M Ohm(Min) |
DIELECTRIC STRENGTH: |
1500VAC-1MINUTE |
MECHANICAL LIFE CYCLE: |
100.000 CYCLES |
OPERATING TEMPERATURE: |
-40 To +85 DEGREES |
FRONT SEAL: |
IP68 |
RESISTIVE LOAD: |
16A 125/250VAC,15A 28VDC |
INDUCTIVE LOAD: |
15A 28VDC |
LEVER: |
COPPER ALLOY |
HOUSING: |
NYLON (UL94V-0) |
TERMINAL: |
COPPER ALLOY |
CONTACT: |
COPPER ALLOY |
WAVE SOLDERING TEMPERATURE: |
260±5C |
MANUAL SOLDERING TEMPERATURE: |
350℃ MAX |
CONTACT RESISTANCE: |
20m Ohm(Max) |
INSULATION RESISTANCE: |
100VDC-100M Ohm(Min) |
DIELECTRIC STRENGTH: |
1500VAC-1MINUTE |
MECHANICAL LIFE CYCLE: |
100.000 CYCLES |
OPERATING TEMPERATURE: |
-40 To +85 DEGREES |
FRONT SEAL: |
IP68 |
RESISTIVE LOAD: |
16A 125/250VAC,15A 28VDC |
INDUCTIVE LOAD: |
15A 28VDC |
LEVER: |
COPPER ALLOY |
HOUSING: |
NYLON (UL94V-0) |
TERMINAL: |
COPPER ALLOY |
CONTACT: |
COPPER ALLOY |
WAVE SOLDERING TEMPERATURE: |
260±5C |
MANUAL SOLDERING TEMPERATURE: |
350℃ MAX |

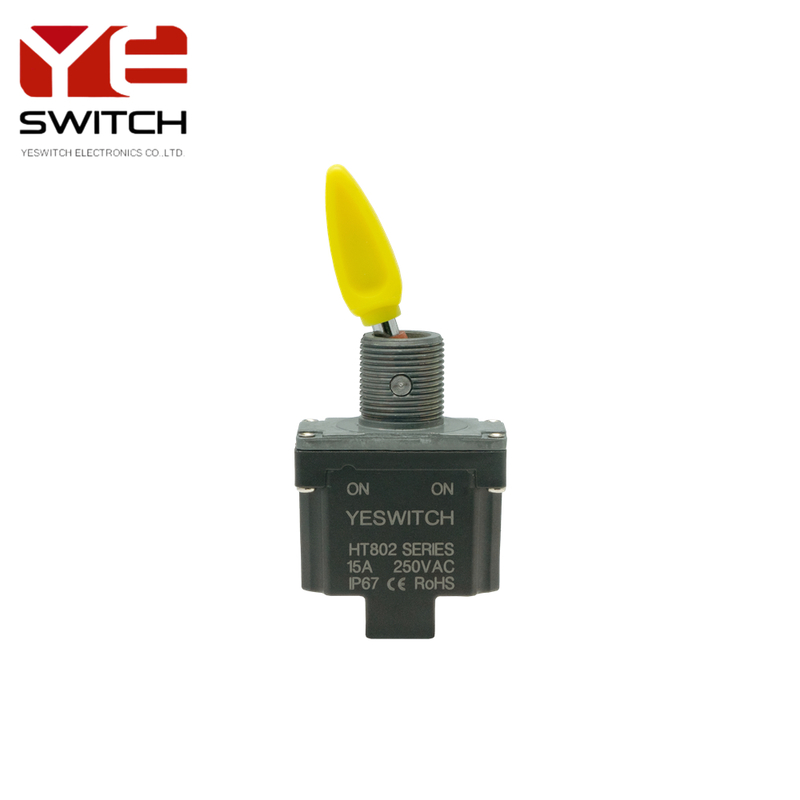

Momentary Industrial Toggle Switch With Handles Sets For Heavy Machinery
| SPECIFICATIONS | |
| CONTACT RESISTANCE: | 20m ohm(Max) |
| INSULATION RESISTANCE: | 100VDC-100M ohm(Min) |
| DIELECTRIC STRENGTH: | 1500VAC-1MINUTE |
| MECHANICAL LIFE CYCLE: | 100.000 CYCLES |
| OPERATING TEMPERATURE: | -40 to +85 DEGREES |
| FRONT SEAL: | IP68 |
| RATING | |
| RESISTIVE LOAD: | 16A 125/250VAC,15A 28VDC |
| INDUCTIVE LOAD: | 15A 28VDC |
| MATERIAL | |
|
ACTUATOR: |
COPPER ALLOY |
|
HOUSING: |
NYLON (UL94V-0) |
|
BUSHING: |
ZINC ALLOY |
|
TERMINAL: |
COPPER ALLOY |
|
CONTACT: |
COPPER ALLOY |
|
O-RING: |
SILICONE RUBBER |
|
SHEEL: |
STAINLESS STELL |
Engineered for precise, temporary control in heavy machinery, this momentary toggle switch features interchangeable handle sets, ideal for cranes, bulldozers, and industrial presses where short-duration operations are critical.
The momentary action ensures the switch springs back to its neutral position when released, preventing unintended continuous operation—essential for functions like hydraulic lifts, clutch engagement, or temporary power surges. Its robust mechanism delivers crisp, responsive actuation, with a 5A 250V AC rating to handle heavy loads reliably.
Included handle sets (rubber-gripped metal and ergonomic plastic) adapt to operator preferences and environments, from oily workshops to outdoor job sites. Screw terminals with nickel plating secure wires, resisting vibration and corrosion for stable connections.
Housed in a zinc alloy casing with IP65 protection, it withstands -40°C to 80°C temperatures, dust, and water jets. The 16mm panel-mount design integrates seamlessly into control panels, meeting safety standards for heavy machinery. A must-have for applications demanding precise, short-term control with adaptability.
Our Company
Yeswitch Electronics Co,.ltd, found in 1995, is one of the professional manufacturers of switches in Taiwan. We are specializing in manufacturing all kinds of switches, including metal switches, seat safety switches, key switches, push button switches,toggle switches, rocker switches,etc.
Yeswitch have supply all kinds of switches to global market with the good quality and competitive price. In recent years, we has expanded our product line from industrial products to consumer goods, catering the need for safety, practicality, and penalization. Customized services are also available upon request.
FAQ
Q1: When can I get the quotation ?
A: We are online all day, so you can get quotation within 24h.
Q2: When can I get the samples?
A: It depends on the express, generally 3-10 days.
Q3: Can you accept small order?
A: Yes, we will try our best to help you with your business.
Q4: What's the lead time of mass production?
A: Generally 2-4weeks. We will inform you the delivery time after receiving your payment.
