Product Details
Place of Origin: China
Brand Name: YESWITCH
Certification: IP68,CE,RoHS
Model Number: HT802SG3B7T1D25
Payment & Shipping Terms
Minimum Order Quantity: 500
Price: Negotiable
Packaging Details: Carton
Delivery Time: 4-6 Weeks
Payment Terms: T/T
Supply Ability: 7,000/Day
CONTACT RESISTANCE: |
20MΩ MAX(INITIAL) |
INSULATION RESISTANCE: |
100VDC-100M Ohm(Min) |
DIELECTRIC STRENGTH: |
1500VAC-1MINUTE |
MECHANICAL LIFE CYCLE: |
100.000 CYCLES |
OPERATING TEMPERATURE: |
-40 To +85 DEGREES |
FRONT SEAL: |
IP68 |
RESISTIVE LOAD: |
16A 125/250VAC,15A 28VDC |
INDUCTIVE LOAD: |
15A 28VDC |
LEVER: |
COPPER ALLOY |
HOUSING: |
NYLON (UL94V-0) |
TERMINAL: |
COPPER ALLOY |
CONTACT: |
COPPER ALLOY |
DIELECTRIC WITHSTANDING VOLTAGE: |
1500 VAC(50HZ OR 60HZ) |
CONTACT RESISTANCE: |
20MΩ MAX(INITIAL) |
INSULATION RESISTANCE: |
100VDC-100M Ohm(Min) |
DIELECTRIC STRENGTH: |
1500VAC-1MINUTE |
MECHANICAL LIFE CYCLE: |
100.000 CYCLES |
OPERATING TEMPERATURE: |
-40 To +85 DEGREES |
FRONT SEAL: |
IP68 |
RESISTIVE LOAD: |
16A 125/250VAC,15A 28VDC |
INDUCTIVE LOAD: |
15A 28VDC |
LEVER: |
COPPER ALLOY |
HOUSING: |
NYLON (UL94V-0) |
TERMINAL: |
COPPER ALLOY |
CONTACT: |
COPPER ALLOY |
DIELECTRIC WITHSTANDING VOLTAGE: |
1500 VAC(50HZ OR 60HZ) |

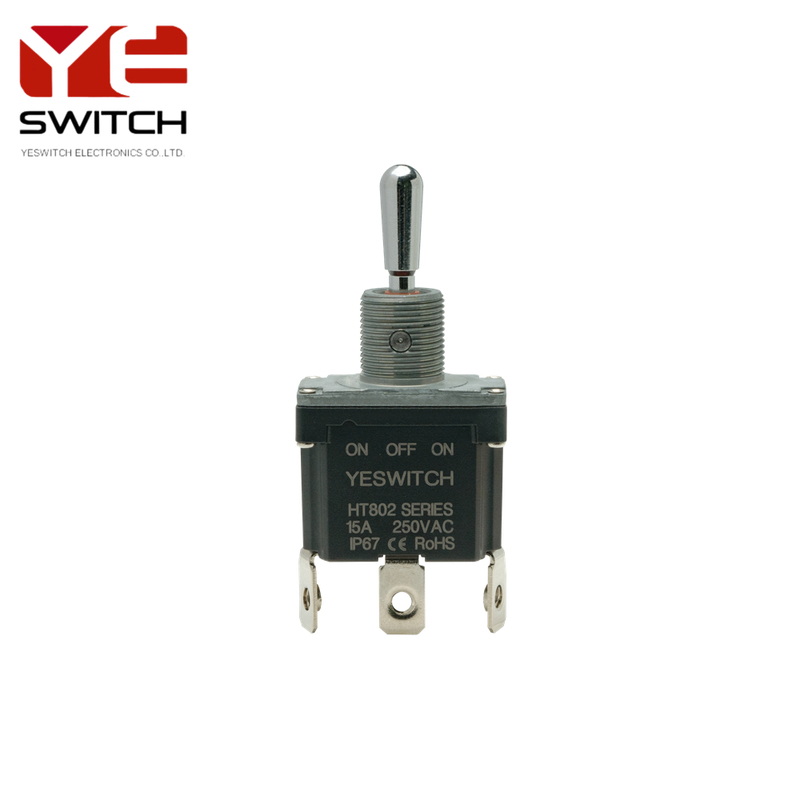

High Current Metal Handle Industrial Toggle Switch With Outer Screw Terminal
| SPECIFICATIONS | |
| CONTACT RESISTANCE: | 20m ohm(Max) |
| INSULATION RESISTANCE: | 100VDC-100M ohm(Min) |
| DIELECTRIC STRENGTH: | 1500VAC-1MINUTE |
| MECHANICAL LIFE CYCLE: | 100.000 CYCLES |
| OPERATING TEMPERATURE: | -40 to +85 DEGREES |
| FRONT SEAL: | IP68 |
| RATING | |
| RESISTIVE LOAD: | 16A 125/250VAC,15A 28VDC |
| INDUCTIVE LOAD: | 15A 28VDC |
| MATERIAL | |
|
ACTUATOR: |
COPPER ALLOY |
|
HOUSING: |
NYLON (UL94V-0) |
|
BUSHING: |
ZINC ALLOY |
|
TERMINAL: |
COPPER ALLOY |
|
CONTACT: |
COPPER ALLOY |
|
O-RING: |
SILICONE RUBBER |
|
SHEEL: |
STAINLESS STELL |
Built for rugged industrial use, this toggle switch combines a heavy-duty metal handle with exposed outer screw terminals, delivering reliable performance in machinery, control panels, and harsh work environments.
The metal handle—crafted from high-grade zinc alloy with a corrosion-resistant finish—withstands impacts, extreme temperatures, and exposure to oils, chemicals, and debris. Its ergonomic design ensures a secure grip, even with gloved hands, making it ideal for frequent operation in factories, construction sites, or outdoor industrial setups. The handle’s positive decent action provides clear tactile feedback, preventing ambiguous switching in critical applications.
Equipped with outer screw terminals, this switch offers straightforward, vibration-resistant wiring. The terminals—made from nickel-plated brass—accommodate, with visible screw heads that simplify installation and maintenance. Their exposed design allows for easy inspection of connections, ensuring tight, low-resistance contacts in high-vibration equipment like generators or conveyors.
Housed in a robust metal casing with an IP65 rating, the switch resists dust and water jets, enhancing durability in demanding conditions. Rated for 15A @ 250V AC, it handles moderate to heavy current loads, while compliance with industrial safety standards ensures reliability in power distribution, tool activation, or system control.
This switch merges the ruggedness of a metal handle with the practicality of outer screw terminals, making it a dependable choice for industrial settings where durability and ease of maintenance are paramount.
FAQ
Q1: When can I get the quotation ?
A: We are online all day, so you can get quotation within 24h.
Q2: When can I get the samples?
A: It depends on the express, generally 3-10 days.
Q3: Can you accept small order?
A: Yes, we will try our best to help you with your business.
Q4: What's the lead time of mass production?
A: Generally 2-4weeks. We will inform you the delivery time after receiving your payment.
