Product Details
Place of Origin: China
Brand Name: YESWITCH
Certification: IP68,CE,RoHS
Model Number: HT802DG3B4T1D22
Payment & Shipping Terms
Minimum Order Quantity: 500
Price: Negotiable
Packaging Details: Carton
Delivery Time: 4-6 Weeks
Payment Terms: T/T
Supply Ability: 7,000/Day
CONTACT RESISTANCE: |
20MΩ MAX(INITIAL) |
INSULATION RESISTANCE: |
100MΩ MIN/500VDC |
DIELECTRIC STRENGTH: |
1500VAC-1MINUTE |
MECHANICAL LIFE CYCLE: |
100.000 CYCLES |
OPERATING TEMPERATURE: |
-40 To +85 DEGREES |
FRONT SEAL: |
IP68 |
RESISTIVE LOAD: |
16A 125/250VAC,15A 28VDC |
INDUCTIVE LOAD: |
15A 28VDC |
LEVER: |
COPPER ALLOY |
HOUSING: |
NYLON (UL94V-0) |
TERMINAL: |
COPPER ALLOY |
CONTACT: |
COPPER ALLOY |
VIBRATION FREQUENCY: |
10-55-10HZ IN 1- MIN |
CONTACT RESISTANCE: |
20MΩ MAX(INITIAL) |
INSULATION RESISTANCE: |
100MΩ MIN/500VDC |
DIELECTRIC STRENGTH: |
1500VAC-1MINUTE |
MECHANICAL LIFE CYCLE: |
100.000 CYCLES |
OPERATING TEMPERATURE: |
-40 To +85 DEGREES |
FRONT SEAL: |
IP68 |
RESISTIVE LOAD: |
16A 125/250VAC,15A 28VDC |
INDUCTIVE LOAD: |
15A 28VDC |
LEVER: |
COPPER ALLOY |
HOUSING: |
NYLON (UL94V-0) |
TERMINAL: |
COPPER ALLOY |
CONTACT: |
COPPER ALLOY |
VIBRATION FREQUENCY: |
10-55-10HZ IN 1- MIN |

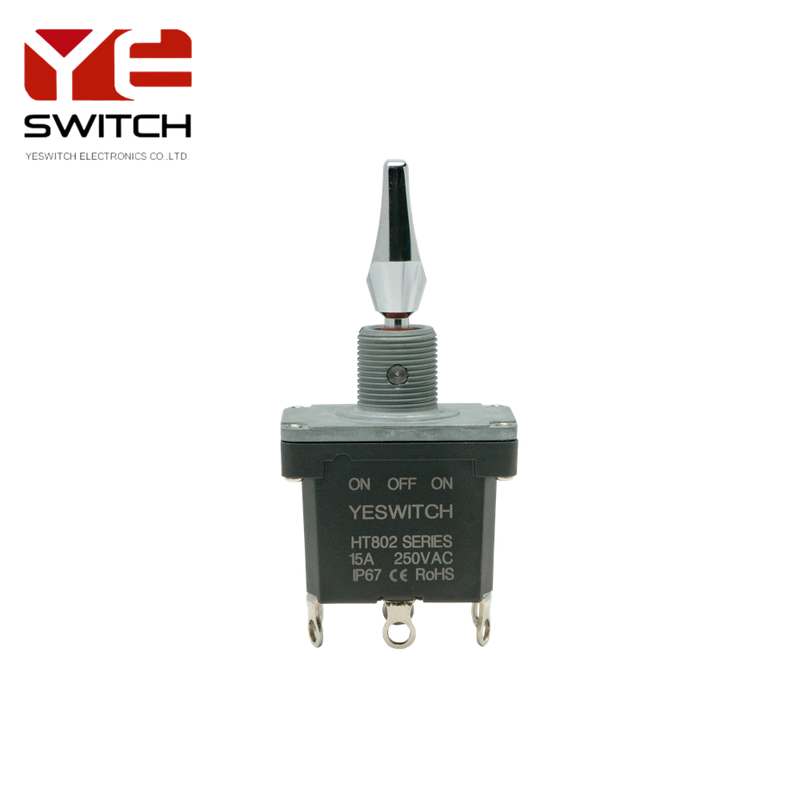

High Current Industrial Metal Toggle Switch With Solder Terminal
| SPECIFICATIONS | |
| CONTACT RESISTANCE: | 20m ohm(Max) |
| INSULATION RESISTANCE: | 100VDC-100M ohm(Min) |
| DIELECTRIC STRENGTH: | 1500VAC-1MINUTE |
| MECHANICAL LIFE CYCLE: | 100.000 CYCLES |
| OPERATING TEMPERATURE: | -40 to +85 DEGREES |
| FRONT SEAL: | IP68 |
| RATING | |
| RESISTIVE LOAD: | 16A 125/250VAC,15A 28VDC |
| INDUCTIVE LOAD: | 15A 28VDC |
| MATERIAL | |
|
ACTUATOR: |
COPPER ALLOY |
|
HOUSING: |
NYLON (UL94V-0) |
|
BUSHING: |
ZINC ALLOY |
|
TERMINAL: |
COPPER ALLOY |
|
CONTACT: |
COPPER ALLOY |
|
O-RING: |
SILICONE RUBBER |
|
SHEEL: |
STAINLESS STELL |
Engineered to handle heavy electrical loads, the high current industrial metal toggle switch with solder terminals is a powerhouse designed for industrial systems demanding robust current management. Crafted from premium, heat-resistant metal alloys, its housing and toggle mechanism endure extreme temperatures generated by high-amperage circuits, making it ideal for heavy machinery, power distribution units, and industrial heating or motor systems.
The switch’s solder terminals ensure permanent, low-resistance connections, critical for maintaining stability in high-current applications where loose wiring could cause overheating or system failures. This design eliminates the risk of intermittent contact, a common issue in high-power setups, and streamlines installation for electricians working with thick-gauge wires.
Its rugged metal construction resists mechanical stress, corrosion, and exposure to industrial debris, ensuring reliable operation in factories, refineries, and construction sites. The toggle lever provides crisp, tactile actuation, allowing operators to confirm circuit status at a glance—essential for preventing overloads in complex electrical systems.
Certified to meet stringent industrial safety standards, this switch balances high conductivity with robust insulation, safeguarding against short circuits and electrical hazards. For applications requiring unwavering performance under heavy current loads, it stands as a trusted solution for seamless, long-term operation.
