Product Details
Place of Origin: China
Brand Name: YESWITCH
Certification: IP68,CE,RoHS
Model Number: HT802SG4B3T1D23
Payment & Shipping Terms
Minimum Order Quantity: 500
Price: Negotiable
Packaging Details: Carton
Delivery Time: 4-6 Weeks
Payment Terms: T/T
Supply Ability: 7,000/Day
CONTACT RESISTANCE: |
20m Ohm(Max) |
INSULATION RESISTANCE: |
100VDC-100M Ohm(Min) |
MECHANICAL LIFE CYCLE: |
100.000 CYCLES |
OPERATING TEMPERATURE: |
-40 To +85 DEGREES |
FRONT SEAL: |
IP68 |
RESISTIVE LOAD: |
16A 125/250VAC,15A 28VDC |
INDUCTIVE LOAD: |
15A 28VDC |
LEVER: |
COPPER ALLOY |
HOUSING: |
NYLON (UL94V-0) |
TERMINAL: |
COPPER ALLOY |
VIBRATION STANDARD: |
MIL-STD-202F |
VIBRATION DIRECTION: |
3 VERTICAL DIRECTIONS |
CONTACT RESISTANCE: |
20m Ohm(Max) |
INSULATION RESISTANCE: |
100VDC-100M Ohm(Min) |
MECHANICAL LIFE CYCLE: |
100.000 CYCLES |
OPERATING TEMPERATURE: |
-40 To +85 DEGREES |
FRONT SEAL: |
IP68 |
RESISTIVE LOAD: |
16A 125/250VAC,15A 28VDC |
INDUCTIVE LOAD: |
15A 28VDC |
LEVER: |
COPPER ALLOY |
HOUSING: |
NYLON (UL94V-0) |
TERMINAL: |
COPPER ALLOY |
VIBRATION STANDARD: |
MIL-STD-202F |
VIBRATION DIRECTION: |
3 VERTICAL DIRECTIONS |

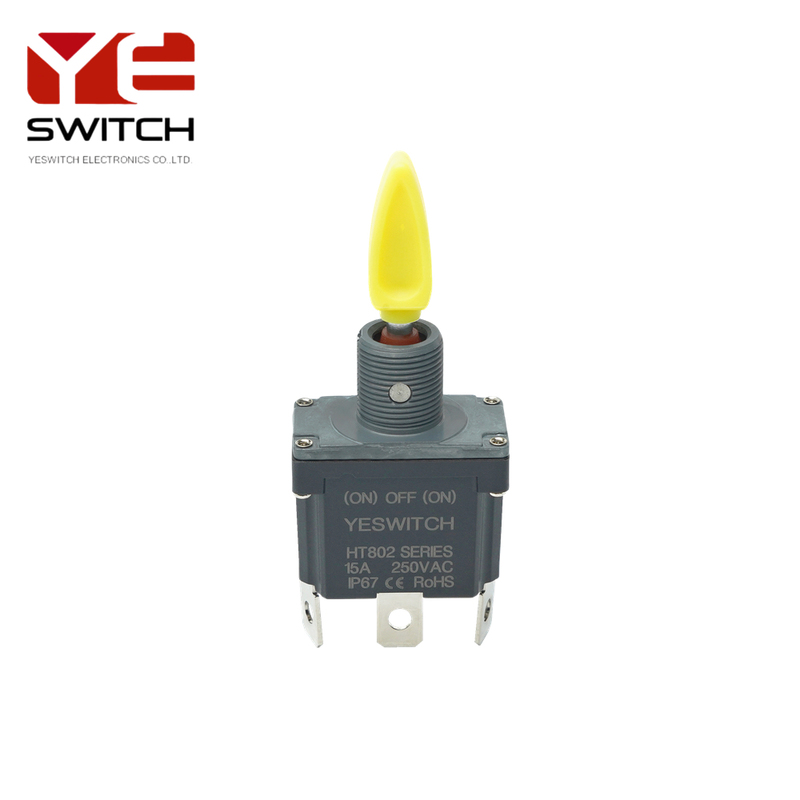

This industrial-grade three-position toggle switch features a versatile (ON)-OFF-(ON) configuration designed for precision control in demanding applications. The switch incorporates flat PC terminals for secure printed circuit board mounting, making it ideal for space-constrained industrial environments. Built with a durable metal toggle and high-strength thermoplastic housing, it delivers reliable performance through 10,000 mechanical cycles while maintaining consistent electrical characteristics.
Perfect for industrial control systems requiring bidirectional control, including:
The flat PC terminal design enables:
Additional features include:
This switch combines precise mechanical operation with reliable electrical performance, making it suitable for industrial automation, machinery controls, and professional equipment where space optimization and reliable switching are critical requirements. The three-position design provides flexible control options while the flat PC terminals ensure secure mounting in vibration-prone environments.
| CONTACT RESISTANCE: | 20m ohm(Max) |
|---|---|
| INSULATION RESISTANCE: | 100VDC-100M ohm(Min) |
| DIELECTRIC STRENGTH: | 1500VAC-1MINUTE |
| MECHANICAL LIFE CYCLE: | 100.000 CYCLES |
| OPERATING TEMPERATURE: | -40 to +85 DEGREES |
| FRONT SEAL: | IP68 |
| RESISTIVE LOAD: | 16A 125/250VAC,15A 28VDC |
|---|---|
| INDUCTIVE LOAD: | 15A 28VDC |
| ACTUATOR: | COPPER ALLOY |
|---|---|
| HOUSING: | NYLON (UL94V-0) |
| BUSHING: | ZINC ALLOY |
| TERMINAL: | COPPER ALLOY |
| CONTACT: | COPPER ALLOY |
| O-RING: | SILICONE RUBBER |
| SHEEL: | STAINLESS STELL |
